DC Chargers in EVs provide direct current to electric vehicles, enabling fast and ultra-fast charging by supplying power directly to the battery, ideal for highways, commercial locations, and public charging stations.

Choose the Right

DC Charger for Your Needs

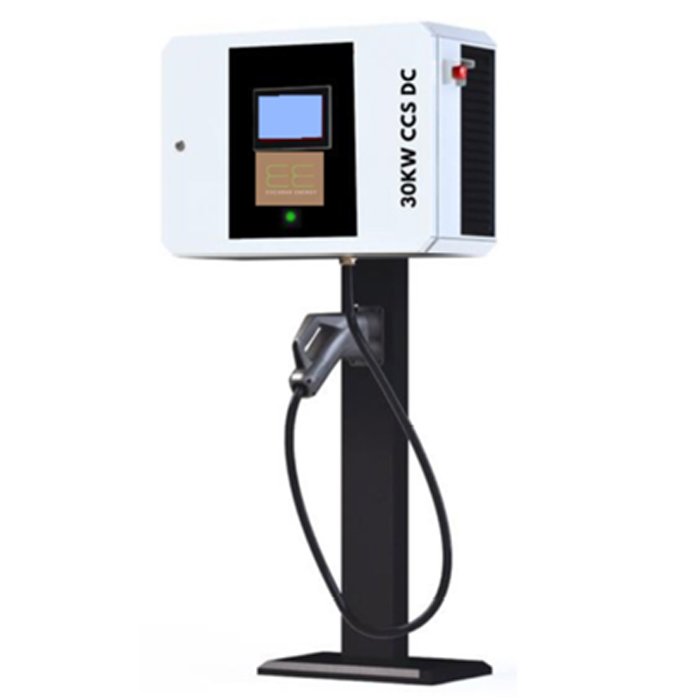

DC FAST SINGLE GUN WALLBOX

EV Charger - CCS & GB/T

Suitable For

Electric Car Fleets Highway Restaurants Hotels/Malls Airports

Variants

CCS DC - 30KW Three Phase
GB/T DC - 15KW Three Phase

Features

CCS - 2 Gun with 5m Cable 7
Inch Touch-Screen Display
>=96% Efficiency; Forced Air Cooling
OCPP 1.6J Enabled; Wi-fi, GSM & LAN for Connection
RFID Card for Authentication
Inbuilt Metering; RGB LED for Status Indication

Protections: Over/Under Current; Over/Under Voltage
Short-Circuit; Leakage Current; Earth Detection, Surge Protection Wall
or Pedestal Mounting (Pedestal Optional)

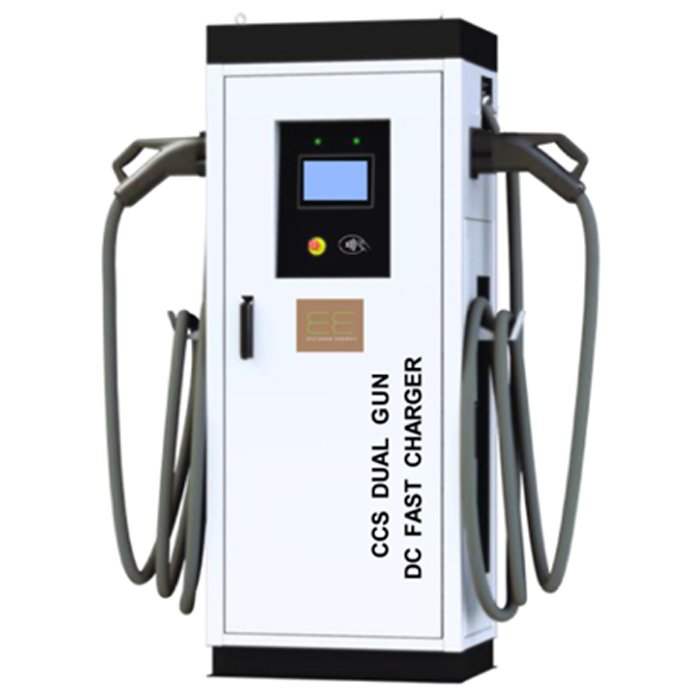

DC FAST SINGLE & DUAL GUN

EV Charger - CCS (DLM) & GB/T

Suitable For

Electric Car Fleets Electric Bus/Truck Fleets Highway Hotels/Malls

Variants

Single Gun Charger CCS - 60KW; 90KW; 120KW
Dual Gun Charger CCS - 60KW; 120KW

Features

Dynamic Load Management (Optional)
CCS - 2 Gun with 5m Cable
7 Inch Touch-Screen Display; 10 Inch Optional
>=96% Efficiency; Forced Air Cooling
OCPP 1.6J Enabled; Wi-fi, GSM & LAN for Connection
RFID Card for Authentication
Inbuilt Metering; RGB LED for Status Indication

Protections: Over/Under Current; Over/Under Voltage
Short-Circuit; Leakage Current; Earth Detection, Surge Protection Floor
Mounting (all 4 Side access required)
